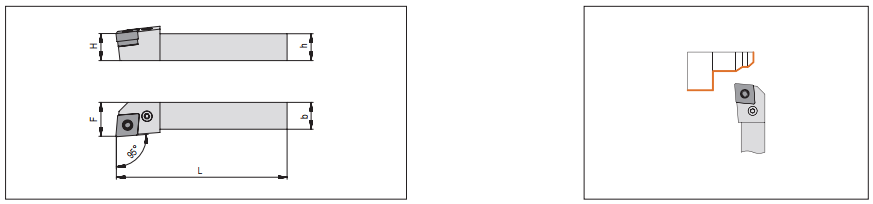

PCLNR/L державка для наружной обработки
| Название | Основные размеры (мм) | Подходящие пластины | ||||
| h | b | H | F | L | ||
| PCLNR/L1616H09 | 16 | 16 | 16 | 20 | 100 | CN..0903.. |
| PCLNR/L2020K09 | 20 | 20 | 20 | 25 | 125 | CN..0903.. |
| PCLNR/L2525M09 | 25 | 25 | 25 | 32 | 150 | CN..0903.. |
| PCLNR/L2020K12 | 20 | 20 | 20 | 25 | 125 | CN..1204.. |
| PCLNR/L2525M12 | 25 | 25 | 25 | 32 | 150 | CN..1204.. |
| PCLNR/L3232P12 | 32 | 32 | 32 | 40 | 170 | CN..1204.. |
| PCLNR/L2525M16 | 25 | 25 | 25 | 32 | 150 | CN..1606.. |
| PCLNR/L3232P16 | 32 | 32 | 32 | 40 | 170 | CN..1606.. |
| PCLNR/L3232P19 | 32 | 32 | 32 | 40 | 170 | CN..1906.. |
| PCLNR/L4040R19 | 40 | 40 | 40 | 50 | 200 | CN..1906.. |
| Название | Shim | Lever | Elastic pin | Screw | Wrench |
 |
 |
 |
 |
 |
|
| PCLNR/L1616H09 | ALSC 32 | ALL 0903 | ALP 10 | ALH06-170 | AWH 2.5 |
| PCLNR/L2020K09 | ALSC 32 | ALL 0903 | ALP 10 | ALH06-170 | AWH 2.5 |
| PCLNR/L2525M09 | ALSC 32 | ALL 0903 | ALP 10 | ALH06-170 | AWH 2.5 |
| PCLNR/L2020K12 | ALSC 42 | ALL 1204 | ALP 12 | ALH08-210 | AWH 3 |
| PCLNR/L2525M12 | ALSC 42 | ALL 1204 | ALP 12 | ALH08-210 | AWH 3 |
| PCLNR/L3232P12 | ALSC 42 | ALL 1204 | ALP 12 | ALH08-210 | AWH 3 |
| PCLNR/L2525M16 | ALSC 53 | ALL 15 | ALP 15 | ALH08-250 | AWH 3 |
| PCLNR/L3232P16 | ALSC 53 | ALL 15 | ALP 15 | ALH08-250 | AWH 3 |
| PCLNR/L3232P19 | ALSC 53 | ALL 15 | ALP 19 | ALH10-273 | AWH 4 |
| PCLNR/L4040R19 | ALSC 53 | ALL 19 | ALP 19 | ALH10-273 | AWH 4 |
