MDNNN державка для наружной обработки

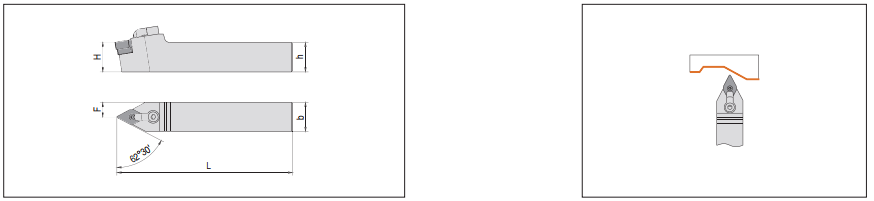

| Название | Основные размеры (мм) | Подходящие пластины | ||||
| h | b | H | F | L | ||
| MDNNN1616H11 | 16 | 16 | 16 | 8 | 100 | DN..1104.. |
| MDNNN2020K11 | 20 | 20 | 20 | 10 | 125 | DN..1104.. |
| MDNNN2525M11 | 25 | 25 | 25 | 12.5 | 150 | DN..1104.. |
| MDNNN2525M15 | 25 | 25 | 25 | 12.5 | 150 | DN..1506.. |
| MDNNN3232P15 | 32 | 32 | 32 | 16 | 170 | DN..1506.. |
| MDNNN4040R15 | 40 | 40 | 40 | 20 | 200 | DN..1506.. |
| MDNNN2525M15 | 25 | 25 | 25 | 12.5 | 150 | DN..1504.. |
| MDNNN3232P15 | 32 | 32 | 32 | 16 | 170 | DN..1504.. |
| MDNNN4040R15 | 40 | 40 | 40 | 20 | 200 | DN..1504.. |
| Название | Shim | Pin | Wrench | Clamping plate | Screw | Wrench |
 |
 |
 |
 |
 |
|
|
| MDNNN1616H11 | AMSD 32 | AMP 32L | AWH05-64 | ACL 20 | AMH 48 | AWH01-8 |
| MDNNN2020K11 | AMSD 32 | AMP 34L | AWH05-64 | ACL 20 | AMH 48 | AWH01-8 |
| MDNNN2525M11 | AMSD 32 | AMP 34L | AWH05-64 | ACL 20 | AMH 48 | AWH01-8 |
| MDNNN2525M15 | AMSD 43 | AMP 46L | AWH05-32 | ACL 12 | AMH 510 | AWH05-32 |
| MDNNN3232P15 | AMSD 43 | AMP 46L | AWH03-32 | ACL 12 | AMH 510 | AWH05-32 |
| MDNNN4040R15 | AMSD 43 | AMP 46L | AWH03-32 | ACL 12 | AMH 510 | AWH05-32 |
| MDNNN2525M15 | AMSD 44 | AMP 46L | AWH03-32 | ACL 12 | AMH 510 | AWH05-32 |
| MDNNN3232P15 | AMSD 44 | AMP 46L | AWH03-32 | ACL 12 | AMH 510 | AWH05-32 |
| MDNNN4040R15 | AMSD 44 | AMP 46L | AWH03-32 | ACL 12 | AMH 510 | AWH05-32 |
