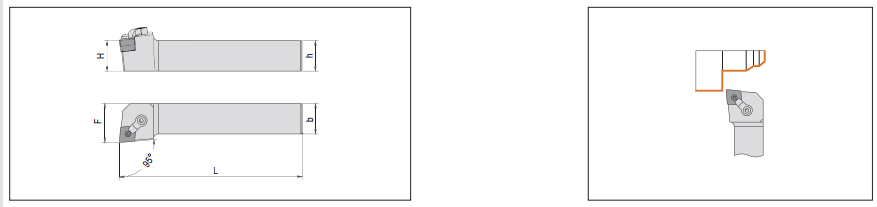

MCLNR/L державка для наружной обработки
| Название | Основные размеры (мм) | Подходящие пластины | ||||
| h | b | H | F | L | ||
| MCLNR/L1616H12 | 16 | 16 | 16 | 20 | 100 | CN..1204.. |
| MCLNR/L2020K12 | 20 | 20 | 20 | 25 | 125 | CN..1204.. |
| MCLNR/L2525M12 | 25 | 25 | 25 | 32 | 150 | CN..1204.. |
| MCLNR/L3225P12 | 32 | 25 | 32 | 32 | 170 | CN..1204.. |
| MCLNR/L3232P12 | 32 | 32 | 32 | 40 | 170 | CN..1204.. |
| MCLNR/L4040R12 | 40 | 40 | 40 | 50 | 200 | CN..1204.. |
| MCLNR/L2525M16 | 25 | 25 | 25 | 32 | 150 | CN..1606.. |
| MCLNR/L3225P16 | 32 | 25 | 32 | 32 | 170 | CN..1606.. |
| MCLNR/L3232P16 | 32 | 32 | 32 | 40 | 170 | CN..1606.. |
| MCLNR/L4040R16 | 40 | 40 | 40 | 50 | 200 | CN..1606.. |
| MCLNR/L3232P19 | 32 | 32 | 32 | 40 | 170 | CN..1906.. |
| MCLNR/L4040R19 | 40 | 40 | 40 | 50 | 200 | CN..1906.. |
| MCLNR/L5050S19 | 50 | 50 | 50 | 60 | 250 | CN..1906.. |
| MCLNR/L4040R25 | 40 | 40 | 40 | 50 | 200 | CN..1906.. |
| Название | Shim | Pin | Wrench | Clamping plate | Screw | Wrench |
 |
 |
 |
 |
 |
|
|
| MCLNR/L1616H12 | AMSC 43 | AMP 46 | AWH03-32 | ACL 20 | AMH 48 | AWH01-8 |
| MCLNR/L2020K12 | AMSC 43 | AMP 46 | AWH03-32 | ACL 20 | AMH 48 | AWH01-8 |
| MCLNR/L2525M12 | AMSC 43 | AMP 46 | AWH03-32 | ACL 20 | AMH 48 | AWH01-8 |
| MCLNR/L3225P12 | AMSC 43 | AMP 46 | AWH03-32 | ACL 20 | AMH 48 | AWH01-8 |
| MCLNR/L3232P12 | AMSC 43 | AMP 46 | AWH03-32 | ACL 20 | AMH 48 | AWH01-8 |
| MCLNR/L4040R12 | AMSC 43 | AMP 46 | AWH03-32 | ACL 20 | AMH 48 | AWH01-8 |
| MCLNR/L2525M16 | AMSC 53 | AMP 58 | AWH01-8 | ACL 12 | AMH 510 | AWH05-32 |
| MCLNR/L3225P16 | AMSC 53 | AMP 58 | AWH01-8 | ACL 12 | AMH 510 | AWH05-32 |
| MCLNR/L3232P16 | AMSC 53 | AMP 58 | AWH01-8 | ACL 12 | AMH 510 | AWH05-32 |
| MCLNR/L4040R16 | AMSC 53 | AMP 58 | AWH01-8 | ACL 12 | AMH 510 | AWH05-32 |
| MCLNR/L3232P19 | AMSC 63 | AMP 68 | AWH09-64 | ACL 12 | AMH 510 | AWH05-32 |
| MCLNR/L4040R19 | AMSC 63 | AMP 68 | AWH09-64 | ACL 12 | AMH 510 | AWH05-32 |
| MCLNR/L5050S19 | AMSC 63 | AMP 68 | AWH09-64 | ACL 12 | AMH 510 | AWH05-32 |
| MCLNR/L4040R25 | AMSC 84 | AMP 810 | AWH05-32 | ACL 24 | AMH 610 | AWH03-16 |
