Цельные твердосплавные сверла серии D108 c каналами для внутреннего подвода СОЖ 8xDc

Главная » Каталог » Сверлильные инструменты » Сверла монолитные » Цельные твердосплавные сверла серии D108 c каналами для внутреннего подвода СОЖ 8xDc
Цельные твердосплавные сверла серии D108 c каналами для внутреннего подвода СОЖ 8xDc

Цельные твердосплавные сверла серии D108 c каналами для внутреннего подвода СОЖ 8xDc

Цельные твердосплавные сверла серии D108 c каналами для внутреннего подвода СОЖ 8xDc

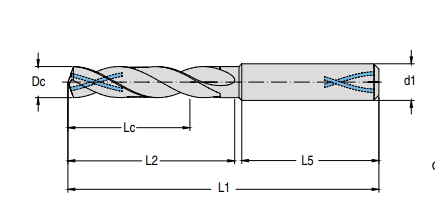

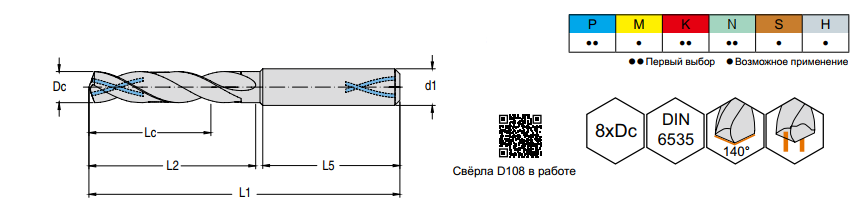

Номер по каталогу

Dc (m7)

mm

Dc

дюйм

Lc

mm

L1

mm

L2

mm

L5

mm

d1 (h6)

mm
D108-08-03000A1 3   28 74 34 36 6
D108-08-03100A1  3.1   28 74 34 36 6
D108-08-03175A1 3.175 1/8" 28 74 34 36 6
D108-08-03200A1 3.2   28 74 34 36 6
D108-08-03300A1 3.3   28 74 34 36 6
D108-08-03400A1 3.4   28 74 34 36 6
D108-08-03500A1 3.5   28 74 34 36 6
D108-08-03572A1 3.572 9/64" 28 74 34 36 6
D108-08-03600A1 3.6   28 74 34 36 6
D108-08-03700A1 3.7   28 74 34 36 6
D108-08-03800A1 3.8   35 81 42 36 6
D108-08-03900A1 3.9   35 81 42 36 6
D108-08-03969A1 3.969 5/32" 35 81 42 36 6
D108-08-04000A1 4   35 81 42 36 6
D108-08-04100A1 4.1   35 81 42 36 6
D108-08-04200A1 4.2   35 81 42 36 6
D108-08-04300A1 4.3   37 81 44 36 6
D108-08-04366A1 4.366 11/64" 37 81 44 36 6
D108-08-04400A1 4.4   37 81 44 36 6
D108-08-04500A1 4.5   37 81 44 36 6
D108-08-04600A1 4.6   37 81 44 36 6
D108-08-04700A1 4.7   37 81 44 36 6
D108-08-04763A1 4.763 3/16" 43 97 52 36 6
D108-08-04800A1 4.8   43 97 52 36 6
D108-08-04900A1 4.9   43 97 52 36 6
D108-08-05000A1 5   45 97 55 36 6
D108-08-05100A1 5.1   45 97 55 36 6
D108-08-05159A1 5.159 13/64" 45 97 55 36 6
D108-08-05200A1 5.2   45 97 55 36 6
D108-08-05300A1 5.3   45 97 55 36 6
D108-08-05400A1 5.4   48 97 57 36 6
D108-08-05500A1 5.5   48 97 57 36 6
D108-08-05556A1 5.556 7/32" 48 97 57 36 6
D108-08-05600A1 5.6   48 97 57 36 6
D108-08-05700A1 5.7   48 97 57 36 6
D108-08-05800A1 5.8   48 97 57 36 6
D108-08-05900A1 5.9   48 97 57 36 6
D108-08-05953A1 5.953 15/64" 48 97 57 36 6
D108-08-06000A1 6   48 97 57 36 6
D108-08-06100A1 6.1   53 106 64 36 8
D108-08-06200A1 6.2   53 106 64 36 8
D108-08-06300A1 6.3   53 106 64 36 8
D108-08-06350A1 6.35 1/4" 54 106 66 36 8
D108-08-06400A1 6.4   54 106 66 36 8
D108-08-06500A1 6.5   55 106 66 36 8
D108-08-06600A1 6.6   55 106 66 36 8
D108-08-06700A1 6.7   55 106 66 36 8
D108-08-06747A1 6.747 17/64' 55 106 66 36 8
D108-08-06800A1 6.8   55 106 66 36 8
D108-08-06900A1 6.9   55 106 66 36 8
D108-08-07000A1 7   55 106 66 36 8
D108-08-07100A1 7.1   60 116 74 36 8
D108-08-07144A1 7.144 9/32" 60 116 74 36 8
D108-08-07200A1 7.2   62 116 74 36 8
D108-08-07300A1 7.3   62 116 74 36 8
D108-08-07400A1 7.4   62 116 74 36 8
D108-08-07500A1 7.5   64 116 76 36 8
D108-08-07541A1 7.541 19/64" 64 116 76 36 8
D108-08-07600A1 7.6   64 116 76 36 8
D108-08-07700A1 7.7   64 116 76 36 8
D108-08-07800A1 7.8   64 116 76 36 8
D108-08-07900A1 7.9   64 116 76 36 8
D108-08-07938A1 7.938 5/16" 64 116 76 36 8
D108-08-08000A1 8   64 116 76 36 10
D108-08-08100A1 8.1   70 139 88 40 10
D108-08-08200A1 8.2   70 139 88 40 10
D108-08-08300A1 8.3   72 139 88 40 10
D108-08-08334A1 8.334 21/64" 72 139 88 40 10
D108-08-08400A1 8.4   72 139 88 40 10
D108-08-08500A1 8.5   72 139 88 40 10
D108-08-08600A1 8.6   72 139 88 40 10
D108-08-08700A1 8.7   74 139 90 40 10
D108-08-08731A1 8.731 11/32" 74 139 90 40 10
D108-08-08800A1 8.8   74 139 90 40 10
D108-08-08900A1 8.9   76 139 92 40 10
D108-08-09000A1 9   76 139 92 40 10
D108-08-09100A1 9.1   78 139 95 40 10
D108-08-09128A1 9.128 23/64" 78 139 95 40 10
D108-08-09200A1 9.2   80 139 95 40 10
D108-08-09300A1 9.3   80 139 95 40 10
D108-08-09400A1 9.4   80 139 95 40 10
D108-08-09500A1 9.5   80 139 95 40 10
D108-08-09525A1 9.525 3/8" 80 139 95 40 10
D108-08-09600A1 9.6   80 139 95 40 10
D108-08-09700A1 9.7   80 139 95 40 10
D108-08-09800A1 9.8   80 139 95 40 10
D108-08-09900A1 9.9   80 139 95 40 10
D108-08-09922A1 9.922 25/64" 80 139 95 40 10
D108-08-10000A1 10   80 139 95 40 10
D108-08-10100A1 10.1   88 163 108 45 12
D108-08-10200A1 10.2   88 163 108 45 12
D108-08-10300A1 10.3   88 163 108 45 12
D108-08-10319A1 10.319 13/32" 88 163 108 45 12
D108-08-10400A1 10.4   90 163 110 45 12
D108-08-10500A1 10.5   90 163 110 45 12
D108-08-10700A1 10.7   90 163 110 45 12
D108-08-10716A1 10.716 27/64" 92 163 110 45 12
D108-08-10800A1 10.8   92 163 110 45 12
D108-08-10900A1 10.9   94 163 112 45 12
D108-08-11000A1 11   94 163 112 45 12
D108-08-11100A1 11.1   94 163 112 45 12
D108-08-11113A1 11.113 7/16" 94 163 112 45 12
D108-08-11200A1 11.2   96 163 114 45 12
D108-08-11300A1 11.3   96 163 114 45 12
D108-08-11500A1 11.5   96 163 114 45 12
D108-08-11600A1 11.6   96 163 114 45 12
D108-08-11700A1 11.7   96 163 114 45 12
D108-08-11800A1 11.8   96 163 114 45 12
D108-08-11900A1 11.9   96 163 114 45 12
D108-08-11906A1 11.906 15/32" 96 163 114 45 12
D108-08-12000A1 12   96 163 114 45 12
D108-08-12303A1 12.303 31/64" 106 182 125 45 14
D108-08-12500A1 12.5   106 182 125 45 14
D108-08-12700A1 12.7 1/2" 106 182 125 45 14
D108-08-13000A1 13   110 182 130 45 14
D108-08-13494A1 13.494 17/32" 115 182 133 45 14
D108-08-13500A1 13.5   115 182 133 45 14
D108-08-14000A1 14   119 182 133 45 14
D108-08-14288A1 14.488 9/16" 122 204 140 48 16
D108-08-14500A1 14.5   124 204 140 48 16
D108-08-15000A1 15   128 204 143 48 16
D108-08-15500A1 15.5   132 204 150 48 16
D108-08-15875A1 15.875 5/8" 134 204 150 48 16
D108-08-16000A1 16   136 204 152 48 16
