Цельные твердосплавные сверла серии D106 c каналами для внутреннего подвода СОЖ 5xDc

Главная » Каталог » Сверлильные инструменты » Сверла монолитные » Цельные твердосплавные сверла серии D106 c каналами для внутреннего подвода СОЖ 5xDc
Цельные твердосплавные сверла серии D106 c каналами для внутреннего подвода СОЖ 5xDc

Цельные твердосплавные сверла серии D106 c каналами для внутреннего подвода СОЖ 5xDc

Цельные твердосплавные сверла серии D106 c каналами для внутреннего подвода СОЖ 5xDc

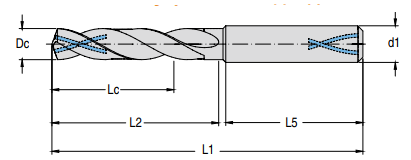

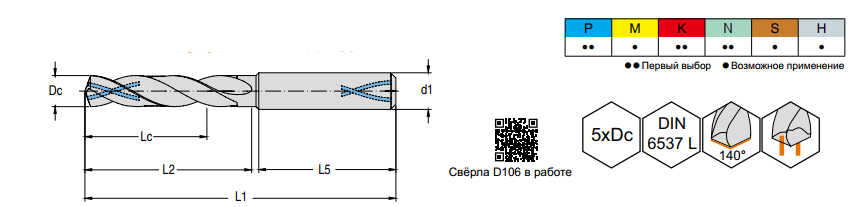

Номер по каталогу

Dc (m7)

mm

Dc

дюйм

Lc

mm

L1

mm

L2

mm

L5

mm

d1 (h6)

mm
D106-05-03000A1 AP30P1U 3   23 66 28 36 4
D106-05-03100A1 AP30P1U 3.1   23 66 28 36 4
D106-05-03175A1 AP30P1U 3.175 1/8" 23 66 28 36 4
D106-05-03200A1 AP30P1U 3.2   23 66 28 36 4
D106-05-03250A1 AP30P1U 3.25   23 66 28 36 4
D106-05-03300A1 AP30P1U 3.3   23 66 28 36 4
D106-05-03400A1 AP30P1U 3.4   23 66 28 36 4
D106-05-03500A1 AP30P1U 3.5   23 66 28 36 4
D106-05-03572A1 AP30P1U 3.572 9/64" 23 66 28 36 4
D106-05-03600A1 AP30P1U 3.6   23 66 28 36 4
D106-05-03650A1 AP30P1U 3.65   23 66 28 36 4
D106-05-03700A1 AP30P1U 3.7   23 66 28 36 4
D106-05-03800A1 AP30P1U 3.8   29 74 36 36 6
D106-05-03900A1 AP30P1U 3.9   29 74 36 36 6
D106-05-03969A1 AP30P1U 3.969 5/32" 29 74 36 36 6
D106-05-04000A1 AP30P1U 4   29 74 36 36 6
D106-05-04100A1 AP30P1U 4.1   29 74 36 36 6
D106-05-04200A1 AP30P1U 4.2   29 74 36 36 6
D106-05-04300A1 AP30P1U 4.3   29 74 36 36 6
D106-05-04366A1 AP30P1U 4.336 11/64" 29 74 36 36 6
D106-05-04400A1 AP30P1U 4.4   29 74 36 36 6
D106-05-04500A1 AP30P1U 4.5   29 74 36 36 6
D106-05-04600A1 AP30P1U 4.6   29 74 36 36 6
D106-05-04650A1 AP30P1U 4.65   29 74 36 36 6
D106-05-04700A1 AP30P1U 4.7   29 74 36 36 6
D106-05-04763A1 AP30P1U 4.763 3/16" 35 82 44 36 6
D106-05-04800A1 AP30P1U 4.8   35 82 44 36 6
D106-05-04900A1 AP30P1U 4.9   35 82 44 36 6
D106-05-05000A1 AP30P1U 5   35 82 44 36 6
D106-05-05100A1 AP30P1U 5.1   35 82 44 36 6
D106-05-05159A1 AP30P1U 5.159 13/64" 35 82 44 36 6
D106-05-05200A1 AP30P1U 5.2   35 82 44 36 6
D106-05-05300A1 AP30P1U 5.3   35 82 44 36 6
D106-05-05400A1 AP30P1U 5.4   35 82 44 36 6
D106-05-05500A1 AP30P1U 5.5   35 82 44 36 6
D106-05-05550A1 AP30P1U 5.55   35 82 44 36 6
D106-05-05556A1 AP30P1U  5.556 7/32" 35 82 44 36 6
D106-05-05600A1 AP30P1U 5.6   35 82 44 36 6
D106-05-05700A1 AP30P1U 5.7   35 82 44 36 6
D106-05-05750A1 AP30P1U 5.75   35 82 44 36 6
D106-05-05800A1 AP30P1U 5.8   35 82 44 36 6
D106-05-05900A1 AP30P1U 5.9   35 82 44 36 6
D106-05-05953A1 AP30P1U 5.953 15/64" 35 82 44 36 6
D106-05-06000A1 AP30P1U 6   35 82 44 36 6
D106-05-06100A1 AP30P1U 6.1   43 91 53 36 8
D106-05-06200A1 AP30P1U 6.2   43 91 53 36 8
D106-05-06300A1 AP30P1U 6.3   43 91 53 36 8
D106-05-06350A1 AP30P1U 6.35 1/4" 43 91 53 36 8
D106-05-06400A1 AP30P1U 6.4   43 91 53 36 8
D106-05-06500A1 AP30P1U 6.65   43 91 53 36 8
D106-05-06600A1 AP30P1U 6.6   43 91 53 36 8
D106-05-06700A1 AP30P1U 6.7   43 91 53 36 8
D106-05-06747A1 AP30P1U 6.747 17/64" 43 91 53 36 8
D106-05-06800A1 AP30P1U 6.8   43 91 53 36 8
D106-05-06900A1 AP30P1U 6.9   43 91 53 36 8
D106-05-07000A1 AP30P1U 7   43 91 53 36 8
D106-05-07100A1 AP30P1U 7.1   43 91 53 36 8
D106-05-07144A1 AP30P1U 7.144 9/32" 43 91 53 36 8
D106-05-07200A1 AP30P1U 7.2   43 91 53 36 8
D106-05-07250A1 AP30P1U 7.25   43 91 53 36 8
D106-05-07300A1 AP30P1U 7.3   43 91 53 36 8
D106-05-07400A1 AP30P1U 7.4   43 91 53 36 8
D106-05-07450A1 AP30P1U 7.45   43 91 53 36 8
D106-05-07500A1 AP30P1U 7.5   43 91 53 36 8
D106-05-07541A1 AP30P1U 7.541 19/64" 43 91 53 36 8
D106-05-07550A1 AP30P1U 7.55   43 91 53 36 8
D106-05-07600A1 AP30P1U 7.6   43 91 53 36 8
D106-05-07700A1 AP30P1U 7.77   43 91 53 36 8
D106-05-07800A1 AP30P1U 7.78   43 91 53 36 8
D106-05-07900A1 AP30P1U 7.79   43 91 53 36 8
D106-05-07938A1 AP30P1U 7.938 5/16" 43 91 53 36 8
D106-05-08000A1 AP30P1U 8   43 91 53 36 8
D106-05-08100A1 AP30P1U 8.1   49 103 61 40 10
D106-05-08200A1 AP30P1U 8.2   49 103 61 40 10
D106-05-08300A1 AP30P1U 8.3   49 103 61 40 10
D106-05-08334A1 AP30P1U 8.334 21/64" 49 103 61 40 10
D106-05-08400A1 AP30P1U 8.4   49 103 61 40 10
D106-05-08500A1 AP30P1U 8.5   49 103 61 40 10
D106-05-08600A1 AP30P1U 8.6   49 103 61 40 10
D106-05-08700A1 AP30P1U 8.7   49 103 61 40 10
D106-05-08731A1 AP30P1U 8.731 11/32" 49 103 61 40 10
D106-05-08750A1 AP30P1U 8.75   49 103 61 40 10
D106-05-08800A1 AP30P1U 8.8   49 103 61 40 10
D106-05-08900A1 AP30P1U 8.9   49 103 61 40 10
D106-05-09000A1 AP30P1U 9   49 103 61 40 10
D106-05-09100A1 AP30P1U 9.1   49 103 61 40 10
D106-05-09128A1 AP30P1U 9.128 23/64" 49 103 61 40 10
D106-05-09200A1 AP30P1U 9.2   49 103 61 40 10
D106-05-09300A1 AP30P1U 9.3   49 103 61 40 10
D106-05-09400A1 AP30P1U 9.4   49 103 61 40 10
D106-05-09500A1 AP30P1U 9.5   49 103 61 40 10
D106-05-09525A1 AP30P1U 9.525 3/8" 49 103 61 40 10
D106-05-09550A1 AP30P1U 9.55   49 103 61 40 10
D106-05-09600A1 AP30P1U 9.6   49 103 61 40 10
D106-05-09700A1 AP30P1U 9.7   49 103 61 40 10
D106-05-09800A1 AP30P1U  9.8   49 103 61 40 10
D106-05-09900A1 AP30P1U 9.9   49 103 61 40 10
D106-05-09922A1 AP30P1U 9.922 25/64" 49 103 61 40 10
D106-05-10000A1 AP30P1U 10   49 103 61 40 10
D106-05-10100A1 AP30P1U 10.1   56 118 71 45 12
D106-05-10200A1 AP30P1U 10.2   56 118 71 45 12
D106-05-10300A1 AP30P1U 10.3   56 118 71 45 12
D106-05-10319A1 AP30P1U 10.319 13/32" 56 118 71 45 12
D106-05-10400A1 AP30P1U 10.4   56 118 71 45 12
D106-05-10500A1 AP30P1U 10.5   56 118 71 45 12
D106-05-10600A1 AP30P1U 10.6   56 118 71 45 12
D106-05-10700A1 AP30P1U 10.7   56 118 71 45 12
D106-05-10716A1 AP30P1U 10.716 27/64" 56 118 71 45 12
D106-05-10800A1 AP30P1U 10.8   56 118 71 45 12
D106-05-10900A1 AP30P1U 10.9   56 118 71 45 12
D106-05-11000A1 AP30P1U 11   56 118 71 45 12
D106-05-11100A1 AP30P1U 11.1   56 118 71 45 12
D106-05-11113A1 AP30P1U 11.113 7/16" 56 118 71 45 12
D106-05-11200A1 AP30P1U 11.2   56 118 71 45 12
D106-05-11300A1 AP30P1U 11.3   56 118 71 45 12
D106-05-11400A1 AP30P1U 11.4   56 118 71 45 12
D106-05-11500A1 AP30P1U 11.5   56 118 71 45 12
D106-05-11509A1 AP30P1U 11.509 29/64" 56 118 71 45 12
D106-05-11600A1 AP30P1U 11.6   56 118 71 45 12
D106-05-11700A1 AP30P1U 11.7   56 118 71 45 12
D106-05-11800A1 AP30P1U 11.8   56 118 71 45 12
D106-05-11900A1 AP30P1U 11.9   56 118 71 45 12
D106-05-11906A1 AP30P1U 11.906 15/32" 56 118 71 45 12
D106-05-12000A1 AP30P1U 12   56 118 71 45 12
D106-05-12100A1 AP30P1U 12.1   60 124 77 45 14
D106-05-12200A1 AP30P1U 12.2   60 124 77 45 14
D106-05-12250A1 AP30P1U 12.25   60 124 77 45 14
D106-05-12300A1 AP30P1U 12.3   60 124 77 45 14
D106-05-12303A1 AP30P1U 12.303 31.64" 60 124 77 45 14
D106-05-12400A1 AP30P1U 12.4   60 124 77 45 14
D106-05-12500A1 AP30P1U 12.5   60 124 77 45 14
D106-05-12600A1 AP30P1U 12.6   60 124 77 45 14
D106-05-12700A1 AP30P1U 12.7 1/2" 60 124 77 45 14
D106-05-12750A1 AP30P1U 12.75   60 124 77 45 14
D106-05-12800A1 AP30P1U 12.8   60 124 77 45 14
D106-05-12900A1 AP30P1U 12.9   60 124 77 45 14
D106-05-13000A1 AP30P1U 13   60 124 77 45 14
D106-05-13100A1 AP30P1U 13.1   60 124 77 45 14
D106-05-13200A1 AP30P1U 13.2   60 124 77 45 14
D106-05-13300A1 AP30P1U 13.3   60 124 77 45 14
D106-05-13400A1 AP30P1U 13.4   60 124 77 45 14
D106-05-13494A1 AP30P1U 13.494 17/32" 60 124 77 45 14
D106-05-13500A1 AP30P1U 13.5   60 124 77 45 14
D106-05-13600A1 AP30P1U 13.6   60 124 77 45 14
D106-05-13700A1 AP30P1U 13.7   60 124 77 45 14
D106-05-13800A1 AP30P1U 13.8   60 124 77 45 14
D106-05-13900A1 AP30P1U 13.9   60 124 77 45 14
D106-05-14000A1 AP30P1U 14   60 124 77 45 14
D106-05-14100A1 AP30P1U 14.1   63 133 83 48 16
D106-05-14200A1 AP30P1U 14.2   63 133 83 48 16
D106-05-14288A1 AP30P1U 14.288 9/16" 63 133 83 48 16
D106-05-14300A1 AP30P1U 14.3   63 133 83 48 16
D106-05-14400A1 AP30P1U 14.4   63 133 83 48 16
D106-05-14500A1 AP30P1U 14.5   63 133 83 48 16
D106-05-14600A1 AP30P1U 14.6   63 133 83 48 16
D106-05-14700A1 AP30P1U 14.7   63 133 83 48 16
D106-05-14750A1 AP30P1U 14.75   63 133 83 48 16
D106-05-14800A1 AP30P1U 14.8   63 133 83 48 16
D106-05-15000A1 AP30P1U 15   63 133 83 48 16
D106-05-15100A1 AP30P1U 15.1   63 133 83 48 16
D106-05-15200A1 AP30P1U 15.2   63 133 83 48 16
D106-05-15300A1 AP30P1U 15.3   63 133 83 48 16
D106-05-15500A1 AP30P1U 15.5   63 133 83 48 16
D106-05-15600A1 AP30P1U 15.6   63 133 83 48 16
D106-05-15700A1 AP30P1U 15.7   63 133 83 48 16
D106-05-15800A1 AP30P1U 15.8   63 133 83 48 16
D106-05-15845A1 AP30P1U 15.875 5/8" 63 133 83 48 16
D106-05-15900A1 AP30P1U 15.9   63 133 83 48 16
D106-05-16000A1 AP30P1U 16   63 133 83 48 16
