Цельные твердосплавные сверла серии D106 c каналами для внутреннего подвода СОЖ 3xDc

Главная » Каталог » Сверлильные инструменты » Сверла монолитные » Цельные твердосплавные сверла серии D106 c каналами для внутреннего подвода СОЖ 3xDc
Цельные твердосплавные сверла серии D106 c каналами для внутреннего подвода СОЖ 3xDc

Цельные твердосплавные сверла серии D106 c каналами для внутреннего подвода СОЖ 3xDc

Цельные твердосплавные сверла серии D106 c каналами для внутреннего подвода СОЖ 3xDc

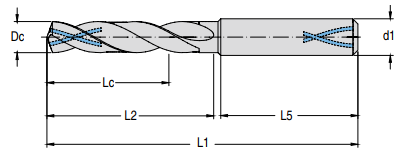

Номер по каталогу

Dc (m7)

mm

Dc

дюйм

Lc

mm

L1

mm

L2

mm

L5

mm

d1 (h6)

mm
D106-03-03000A1 AP30P1U 3   14 62 20 36 4
D106-03-03100A1 AP30P1U 3.1   14 62 20 36 4
D106-03-03175A1 AP30P1U 3.175 1/8" 14 62 20 36 4
D106-03-03200A1 AP30P1U 3.2   14 62 20 36 4
D106-03-03250A1 AP30P1U 3.25   14 62 20 36 4
D106-03-03300A1 AP30P1U 3.3   14 62 20 36 4
D106-03-03400A1 AP30P1U 3.4   14 62 20 36 4
D106-03-03500A1 AP30P1U 3.5   14 62 20 36 4
D106-03-03572A1 AP30P1U 3.572 9/64" 14 62 20 36 4
D106-03-03600A1 AP30P1U 3.6   14 62 20 36 4
D106-03-03650A1 AP30P1U 3.65   14 62 20 36 4
D106-03-03700A1 AP30P1U 3.7   14 62 20 36 4
D106-03-03800A1 AP30P1U 3.8   17 66 24 36 4
D106-03-03900A1 AP30P1U 3.9   17 66 24 36 4
D106-03-03969A1 AP30P1U 3.969 5/32" 17 66 24 36 4
D106-03-04000A1 AP30P1U 4   17 66 24 36 4
D106-03-04100A1 AP30P1U 4.1   17 66 24 36 6
D106-03-04200A1 AP30P1U 4.2   17 66 24 36 6
D106-03-04300A1 AP30P1U 4.3   17 66 24 36 6
D106-03-04366A1 AP30P1U 4.366 11/64" 17 66 24 36 6
D106-03-04400A1 AP30P1U 4.4   17 66 24 36 6
D106-03-04500A1 AP30P1U 4.5   17 66 24 36 6
D106-03-04600A1 AP30P1U 4.6   17 66 24 36 6
D106-03-04650A1 AP30P1U 4.65   17 66 24 36 6
D106-03-04700A1 AP30P1U 4.7   17 66 24 36 6
D106-03-04763A1 AP30P1U 4.763 3/16" 20 66 28 36 6
D106-03-04800A1 AP30P1U 4.8   20 66 28 36 6
D106-03-04900A1 AP30P1U 4.9   20 66 28 36 6
D106-03-05000A1 AP30P1U 5   20 66 28 36 6
D106-03-05100A1 AP30P1U 5.1   20 66 28 36 6
D106-03-05159A1 AP30P1U 5.159 13/64" 20 66 28 36 6
D106-03-05200A1 AP30P1U 5.2   20 66 28 36 6
D106-03-05300A1 AP30P1U 5.3   20 66 28 36 6
D106-03-05400A1 AP30P1U 5.4   20 66 28 36 6
D106-03-05500A1 AP30P1U 5.5   20 66 28 36 6
D106-03-05550A1 AP30P1U 5.55   20 66 28 36 6
D106-03-05556A1 AP30P1U 5.556 7/32" 20 66 28 36 6
 D106-03-05600A1 AP30P1U 5.56   20 66 28 36 6
D106-03-05700A1 AP30P1U 5.7   20 66 28 36 6
D106-03-05750A1 AP30P1U 5.75   20 66 28 36 6
D106-03-05800A1 AP30P1U 5.8   20 66 28 36 6
D106-03-05900A1 AP30P1U 5.9   20 66 28 36 6
D106-03-05953A1 AP30P1U 5.953 15/64" 20 66 28 36 6
D106-03-06000A1 AP30P1U 6   20 66 28 36 6
D106-03-06100A1 AP30P1U 6.1   24 79 41 36 8
D106-03-06200A1 AP30P1U 6.2   24 79 41 36 8
D106-03-06300A1 AP30P1U 6.3   24 79 41 36 8
D106-03-06350A1 AP30P1U 6.35 1/4" 24 79 41 36 8
D106-03-06400A1 AP30P1U 6.4   24 79 41 36 8
D106-03-06500A1 AP30P1U 6.5   24 79 41 36 8
D106-03-06600A1 AP30P1U 6.6   24 79 41 36 8
D106-03-06700A1 AP30P1U 6.7   24 79 41 36 8
D106-03-06747A1 AP30P1U 6.747 17/64' 24 79 41 36 8
D106-03-06800A1 AP30P1U 6.8   24 79 41 36 8
D106-03-06900A1 AP30P1U 6.9   24 79 41 36 8
D106-03-07000A1 AP30P1U 7   24 79 41 36 8
D106-03-07100A1 AP30P1U 7.1   29 79 41 36 8
D106-03-07144A1 AP30P1U 7.114 9/32" 29 79 41 36 8
D106-03-07200A1 AP30P1U 7.2   29 79 41 36 8
D106-03-07250A1 AP30P1U 7.25   29 79 41 36 8
D106-03-07300A1 AP30P1U 7.3   29 79 41 36 8
D106-03-07400A1 AP30P1U 7.4   29 79 41 36 8
D106-03-07450A1 AP30P1U 7.45   29 79 41 36 8
D106-03-07500A1 AP30P1U 7.5   29 79 41 36 8
D106-03-07541A1 AP30P1U 7.541 19/64" 29 79 41 36 8
D106-03-07550A1 AP30P1U 7.55   29 79 41 36 8
D106-03-07600A1 AP30P1U 7.6   29 79 41 36 8
D106-03-07700A1 AP30P1U 7.7   29 79 41 36 8
D106-03-07800A1 AP30P1U 7.8   29 79 41 36 8
D106-03-07900A1 AP30P1U 7.9   29 79 41 36 8
D106-03-07938A1 AP30P1U 7.938 5/16" 29 79 41 36 8
D106-03-08000A1 AP30P1U 8   29 79 41 36 8
D106-03-08100A1 AP30P1U 8.1   35 89 47 40 10
D106-03-08200A1 AP30P1U 8.2   35 89 47 40 10
D106-03-08300A1 AP30P1U 8.3   35 89 47 40 10
D106-03-08334A1 AP30P1U 8.334 21/64" 35 89 47 40 10
D106-03-08400A1 AP30P1U 8.4   35 89 47 40 10
D106-03-08500A1 AP30P1U 8.5   35 89 47 40 10
D106-03-08600A1 AP30P1U 8.6   35 89 47 40 10
D106-03-08700A1 AP30P1U 8.7   35 89 47 40 10
D106-03-08731A1 AP30P1U 8.731 11/32" 35 89 47 40 10
D106-03-08750A1 AP30P1U 8.75   35 89 47 40 10
D106-03-08800A1 AP30P1U 8.8   35 89 47 40 10
D106-03-08900A1 AP30P1U 8.9   35 89 47 40 10
D106-03-09000A1 AP30P1U 9   35 89 47 40 10
D106-03-09100A1 AP30P1U 9.1   35 89 47 40 10
D106-03-09128A1 AP30P1U 9.128 23/64" 35 89 47 40 10
D106-03-09200A1 AP30P1U 9.2   35 89 47 40 10
D106-03-09300A1 AP30P1U 9.3   35 89 47 40 10
D106-03-09400A1 AP30P1U 9.4   35 89 47 40 10
D106-03-09500A1 AP30P1U 9.5   35 89 47 40 10
D106-03-09525A1 AP30P1U 9.525 3/8" 35 89 47 40 10
D106-03-09550A1 AP30P1U 9.55   35 89 47 40 10
D106-03-09600A1 AP30P1U 9.6   35 89 47 40 10
D106-03-09700A1 AP30P1U 9.7   35 89 47 40 10
D106-03-09800A1 AP30P1U 9.8   35 89 47 40 10
D106-03-09900A1 AP30P1U 9.9   35 89 47 40 10
D106-03-09922A1 AP30P1U 9.922 25/64" 35 89 47 40 10
D106-03-10000A1 AP30P1U 10   35 89 47 40 10
D106-03-10100A1 AP30P1U 10.1   40 102 55 45 12
D106-03-10200A1 AP30P1U 10.2   40 102 55 45 12
D106-03-10300A1 AP30P1U 10.3   40 102 55 45 12
D106-03-10319A1 AP30P1U 10.319 13/32" 40 102 55 45 12
D106-03-10400A1 AP30P1U 10.4   40 102 55 45 12
D106-03-10500A1 AP30P1U 10.5   40 102 55 45 12
D106-03-10600A1 AP30P1U 10.6   40 102 55 45 12
D106-03-10700A1 AP30P1U 10.7   40 102 55 45 12
D106-03-10716A1 AP30P1U 10.716 27/64" 40 102 55 45 12
D106-03-10800A1 AP30P1U 10.8   40 102 55 45 12
D106-03-10900A1 AP30P1U 10.9   40 102 55 45 12
D106-03-11000A1 AP30P1U 11   40 102 55 45 12
D106-03-11100A1 AP30P1U 11.1   40 102 55 45 12
D106-03-11113A1 AP30P1U 11.113 7/16" 40 102 55 45 12
D106-03-11200A1 AP30P1U 11.2   40 102 55 45 12
D106-03-11300A1 AP30P1U 11.3   40 102 55 45 12
D106-03-11400A1 AP30P1U 11.4   40 102 55 45 12
D106-03-11500A1 AP30P1U 11.5   40 102 55 45 12
D106-03-11509A1 AP30P1U 11.509 29/64" 40 102 55 45 12
D106-03-11550A1 AP30P1U 11.55   40 102 55 45 12
D106-03-11600A1 AP30P1U 11.6   40 102 55 45 12
D106-03-11700A1 AP30P1U 11.7   40 102 55 45 12
D106-03-11800A1 AP30P1U 11.8   40 102 55 45 12
D106-03-11900A1 AP30P1U 11.9   40 102 55 45 12
D106-03-11906A1 AP30P1U 11.906 15/32" 40 102 55 45 12
D106-03-12000A1 AP30P1U 12   40 102 55 45 12
D106-03-12100A1 AP30P1U 12.1   43 107 60 45 14
D106-03-12200A1 AP30P1U 12.2   43 107 60 45 14
D106-03-12250A1 AP30P1U 12.25   43 107 60 45 14
D106-03-12300A1 AP30P1U 12.3   43 107 60 45 14
D106-03-12303A1 AP30P1U 12.303 31/64" 43 107 60 45 14
D106-03-12400A1 AP30P1U 12.4   43 107 60 45 14
D106-03-12500A1 AP30P1U 12.5   43 107 60 45 14
D106-03-12600A1 AP30P1U 12.6   43 107 60 45 14
D106-03-12700A1 AP30P1U 12.7 1/2" 43 107 60 45 14
D106-03-12750A1 AP30P1U 12.75   43 107 60 45 14
D106-03-12800A1 AP30P1U 12.8   43 107 60 45 14
D106-03-12900A1 AP30P1U 12.9   43 107 60 45 14
D106-03-13000A1 AP30P1U 13   43 107 60 45 14
D106-03-13100A1 AP30P1U 13.1   43 107 60 45 14
D106-03-13200A1 AP30P1U 13.2   43 107 60 45 14
D106-03-13300A1 AP30P1U 13.3   43 107 60 45 14
D106-03-13400A1 AP30P1U 13.4   43 107 60 45 14
D106-03-13494A1 AP30P1U 13.494 17/32" 43 107 60 45 14
D106-03-13500A1 AP30P1U 13.5   43 107 60 45 14
D106-03-13600A1 AP30P1U 13.6   43 107 60 45 14
D106-03-13700A1 AP30P1U 13.7   43 107 60 45 14
D106-03-13800A1 AP30P1U 13.8   43 107 60 45 14
D106-03-13900A1 AP30P1U 13.9   43 107 60 45 14
D106-03-14000A1 AP30P1U 14   43 107 60 45 14
D106-03-14100A1 AP30P1U 14.1   45 115 65 48 16
D106-03-14200A1 AP30P1U 14.2   45 115 65 48 16
D106-03-14288A1 AP30P1U 14.288 9/16" 45 115 65 48 16
D106-03-14300A1 AP30P1U 14.3   45 115 65 48 16
D106-03-14400A1 AP30P1U 14.4   45 115 65 48 16
D106-03-14500A1 AP30P1U 14.5   45 115 65 48 16
D106-03-14600A1 AP30P1U 14.6   45 115 65 48 16
D106-03-14700A1 AP30P1U 14.7   45 115 65 48 16
D106-03-14750A1 AP30P1U 14.75   45 115 65 48 16
D106-03-14800A1 AP30P1U 14.8   45 115 65 48 16
D106-03-15000A1 AP30P1U 15   45 115 65 48 16
D106-03-15100A1 AP30P1U 15.1   45 115 65 48 16
D106-03-15200A1 AP30P1U 15.2   45 115 65 48 16
D106-03-15300A1 AP30P1U 15.3   45 115 65 48 16
D106-03-15500A1 AP30P1U 15.5   45 115 65 48 16
D106-03-15600A1 AP30P1U 15.6   45 115 65 48 16
D106-03-15700A1 AP30P1U 15.7   45 115 65 48 16
D106-03-15800A1 AP30P1U 15.8   45 115 65 48 16
D106-03-15875A1 AP30P1U 15.875 5/8" 45 115 65 48 16
D106-03-15900A1 AP30P1U 15.9   45 115 65 48 16
D106-03-16000A1 AP30P1U 16   45 115 65 48 16
