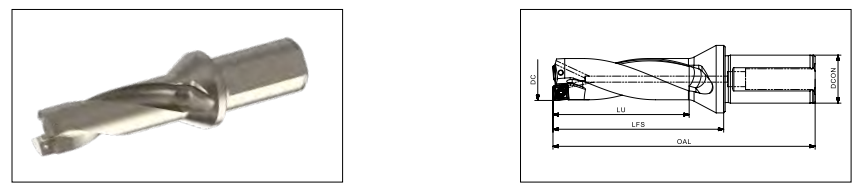

Сверла серии HP. Длина режущей части - 3xD
| Номер по каталогу | Основные размеры (мм) | Пластины | ||||
| DC | LU | OAL | DCON | LFS | ||
| HP-3D130-S20-S05 | 13.0 | 42 | 112 | 20 | 62 | SPMT 050204E-DP |
| HP-3D135-S20-S05 | 13.5 | 44 | 114 | 20 | 64 | |
| HP-3D140-S20-S05 | 14.0 | 45 | 115 | 20 | 65 | |
| HP-3D145-S20-S05 | 14.5 | 47 | 117 | 20 | 67 | |
| HP-3D150-S20-S05 | 15.0 | 48 | 118 | 20 | 68 | |
| HP-3D155-S25-S06 | 15.5 | 50 | 131 | 25 | 75 | SPMT 060204E-DP |
| HP-3D160-S25-S06 | 16.0 | 51 | 132 | 25 | 76 | |
| HP-3D165-S25-S06 | 16.5 | 53 | 134 | 25 | 78 | |
| HP-3D170-S25-S06 | 17.0 | 54 | 135 | 25 | 79 | |
| HP-3D175-S25-S06 | 17.5 | 56 | 137 | 25 | 81 | |
| HP-3D180-S25-S06 | 18.0 | 57 | 138 | 25 | 82 | |
| HP-3D185-S25-S06 | 18.5 | 59 | 140 | 25 | 84 | |
| HP-3D190-S25-S06 | 19.0 | 60 | 141 | 25 | 85 | |
| HP-3D195-S25-S06 | 19.5 | 62 | 143 | 25 | 87 | |
| HP-3D200-S25-S06 | 20.0 | 63 | 144 | 25 | 88 | |
| HP-3D205-S25-S06 | 20.5 | 65 | 146 | 25 | 90 | |
| HP-3D210-S25-S06 | 21.0 | 66 | 147 | 25 | 91 | |
| HP-3D215-S25-S06 | 21.5 | 68 | 149 | 25 | 93 | |
| HP-3D220-S32-S07 | 22.0 | 69 | 159 | 32 | 99 | SPMT 07T308E-DP |
| HP-3D225-S32-S07 | 22.5 | 71 | 161 | 32 | 101 | |
| HP-3D230-S32-S07 | 23.0 | 72 | 162 | 32 | 102 | |
| HP-3D235-S32-S07 | 23.5 | 74 | 164 | 32 | 104 | |
| HP-3D240-S32-S07 | 24.0 | 75 | 165 | 32 | 105 | |
| HP-3D245-S32-S07 | 24.5 | 77 | 167 | 32 | 107 | |
| HP-3D250-S32-S07 | 25.0 | 78 | 168 | 32 | 108 | |
| HP-3D255-S32-S07 | 25.5 | 80 | 170 | 32 | 110 | |
| HP-3D260-S32-S07 | 26.0 | 81 | 171 | 32 | 111 | |
| HP-3D265-S32-S07 | 26.5 | 83 | 173 | 32 | 113 | |
| HP-3D270-S32-S07 | 27.0 | 84 | 174 | 32 | 114 | |
| HP-3D275-S32-S07 | 27.5 | 86 | 176 | 32 | 116 | |
| Основные размеры (мм) | Запасные части | |
| Диаметр сверла (мм) | Винт | Ключ |
 |
 |
 |
| 13-15 | ST020043 | FT-T06 |
| 15.5-21.5 | ST022055 | FT-T06 |
| 22-27.5 | ST025065 | FT-T08 |
| Номер по каталогу | Основные размеры (мм) | Пластины | ||||
| DC | LU | OAL | DCON | LFS | ||
| HP-3D280-S32-S09 | 28.0 | 87 | 177 | 32 | 117 | SPMT 090408E-DP |
| HP-3D285-S32-S09 | 28.5 | 89 | 179 | 32 | 119 | |
| HP-3D290-S32-S09 | 29.0 | 90 | 180 | 32 | 120 | |
| HP-3D295-S32-S09 | 29.5 | 93 | 183 | 32 | 123 | |
| HP-3D300-S32-S09 | 30.0 | 95 | 185 | 32 | 125 | |
| HP-3D310-S32-S09 | 31.0 | 98 | 188 | 32 | 128 | |
| HP-3D320-S32-S09 | 32.0 | 101 | 191 | 32 | 131 | |
| HP-3D330-S32-S09 | 33.0 | 104 | 194 | 32 | 134 | |
| HP-3D340-S40-S11 | 34.0 | 107 | 212 | 40 | 142 | SPMT 110408E-DP |
| HP-3D350-S40-S11 | 35.0 | 110 | 215 | 40 | 145 | |
| HP-3D360-S40-S11 | 36.0 | 113 | 218 | 40 | 148 | |
| HP-3D370-S40-S11 | 37.0 | 116 | 221 | 40 | 151 | |
| HP-3D380-S40-S11 | 38.0 | 119 | 224 | 40 | 154 | |
| HP-3D390-S40-S11 | 39.0 | 122 | 227 | 40 | 157 | |
| HP-3D400-S40-S11 | 40.0 | 125 | 230 | 40 | 160 | |
| HP-3D410-S40-S11 | 41.0 | 128 | 233 | 40 | 163 | |
| HP-3D420-S40-S14 | 42.0 | 131 | 236 | 40 | 166 | SPMT 140512E-DP |
| HP-3D430-S40-S14 | 43.0 | 134 | 239 | 40 | 169 | |
| HP-3D440-S40-S14 | 44.0 | 137 | 242 | 40 | 172 | |
| HP-3D450-S40-S14 | 45.0 | 140 | 245 | 40 | 175 | |
| HP-3D460-S40-S14 | 46.0 | 143 | 248 | 40 | 178 | |
| HP-3D470-S40-S14 | 47.0 | 146 | 251 | 40 | 181 | |
| HP-3D480-S40-S14 | 48.0 | 149 | 254 | 40 | 184 | |
| HP-3D490-S40-S14 | 49.0 | 152 | 257 | 40 | 187 | |
| HP-3D500-S40-S14 | 50.0 | 155 | 260 | 40 | 190 | |
| Основные размеры (мм) | Запасные части | |
| Диаметр сверла (мм) | Винт | Ключ |
|
|
|
| 28-33 | ST035084X | FT-T15 |
| 34-41 | ST040100H | FT-T15 |
| 42-50 | ST050126 | FT-T20 |
